Partaker Elite Z8
Opening Hole Size:
Taiwan High Temperature 5 Wire Touch Screen
Intel Atom D2550 Dual Core 1.86Ghz
Windows Or Linux
Maximum 4G RAM, 1* MSATA SSD+ 1* 2.5 Inch HDD
2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
Dual RJ45 Optional, contact us for it
12.1 Inch LED Screen, 1024*768 Resolution
2mm slim panel, embedded design
Optional WiFi module, support for 802.11b / g / n
Support call on boot, network wake-up
Standard VESA screw hole, can choose the installation method flexibly
Support WinXP, Win7, Win8, Win10, Linux etc….
12.1 Inch LED Screen
1024 × 768
700 : 1
Using Taiwan imported 5-wire high-temperature touch-screen click life> 35 million times
-10℃～60℃ Surface Air Flow
10% ~ 95% @ 40 ℃ without condensation
-20 ℃ ~ 70 ℃
1. Embedded (Recommended)
5. Other Installation Methods
BIOS：AMI 32Mbit，Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Display Mode：Single Display； VGA+LVDS，HDMI+LVDS Synchronous / Asynchronous Dual Display
Motherboard: Fan Design
Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip
Audio: Realtek®ALC662 HD Audio Decoding Core
Each Partaker Industrial All In One Computer will conduct a number of strict testing, including performance testing, temperature testing, vibration, pressure, LED screen aging, interface testing, electronic load, touch screen detection
Before shipment, the appearance of Partaker Industrial All In One Computer, performance, interface, 24-hour aging test to ensure that each is superior quality.
Focus on the industrial sector for 8 years, your most reliable suppliers
INCTEL Technology focus on All in One touch-screen, infrared touch All in One Computer, resistance touch All in One PC, advertising, touch products such as the development and production. For industrial control, commercial display, advertising, business meetings, games, entertainment, medical equipment and other fields, introduced a professional application solutions.
4KG / 4.7KG(Net/Gross)
Input: 180-240V～1.0A 50-60Hz Output: 12VDC 4A MAX
Resistance touch pen*1
Embedded Installation Buckle* 1 Set
- 12.1 inch LED all in one touch panel pc with Taiwan High Temperature 5 Wire Touch Screen. Typical 1024*768 resolution. Compact, fully functional,all the power and functionality of a desktop computer in a all in one design,powered by intel celeron j1900 processor, ideal for industrial and commercial applications. suit for multiple application,industries, car repair shops, security, factory, business, fanancial and projects.
- Windows 7/10 pro as the default system, and linux ubuntu do need to leave us message on the order, thank you. hardware compatible with all windows/linux distributions.
- Fanless passive cooling design:silent solution that’s ultra energy-efficient.the advanced fanless passive cooling design maximizes heat dissipation, meaning all operations can be conducted in absolute silence. business friendly features: auto power-on option can be enabled within the bios menu.0 noise,low consumption,very slim, can stand on desk or embeded/mountable.
- Designed with 3*RS232+VGA+LAN+5*USB2.0+1 USB3.0+DC+Audio In &Out,aesthetic design and reasonable interface layout.
- Size at 309.1*247.5*54(mm),5kgs,with power cord,auto power-on option could be customized,all use big brand memory and ssd/hdd with quality assurance.
Model Number: Partaker Z8
Screen Size: 12.1 Inch
Opening Hole Size: 297*235.5mm (Length*Width)
Screen Type: Taiwan High Temperature 5 Wire Touch Screen
CPU: Intel J1900/J1800/3855U/i5/i7 Processor
OS: Support Windows 7/8/8.1/10,WES7/8,Linux, Vxworks etc; (Barebone, Single RAM, Single SSD or SSD+HDD without any system). Others with Windows 7 pro as the default option, and linux ubuntu or Windows 10 pro do needs to leave us message on the order, thank you.
RAM/SSD/HDD: Maximum 8G RAM, 1* MSATA SSD+ 1* 2.5 Inch HDD
I/O: 3*RS232+VGA+LAN+5*USB2.0+1 USB3.0+DC+Audio In &Out
Physical Dimension: 309.1*247.5*54(mm)
Gross Weight: 5KGS
1: 12.1 Inch LED Screen, 1024*768
2: 2mm slim panel, embedded design
Display Brightness: 300cd/m(2)
Response Time: 12ms
Touch Screen: Using Taiwan imported 5-wire high-temperature touch-screen click life> 35 million times
Operating Temperature: -10℃～60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
1: Embedded (Recommended)
5: Other Installation Methods
BIOS： AMI 32Mbit，Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fanless Design
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Size: 37CM*31CM*13.5CM
Physical Weight: 4KG / 4.7KG(Net/Gross)
Power Supply: Input: 180-240V～1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1
Buckle: Embedded Installation Buckle* 1 Set

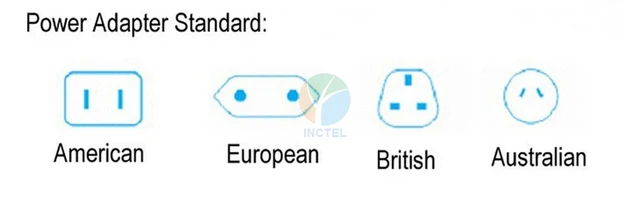

About Power Cord:
